  Uair
Posted by: ahmedwizza - 07-04-2022, 08:42 PM - Forum: DIY Project - Replies (3)

can we make scnce from alexa by Uair after integration with homeassistant??????????????



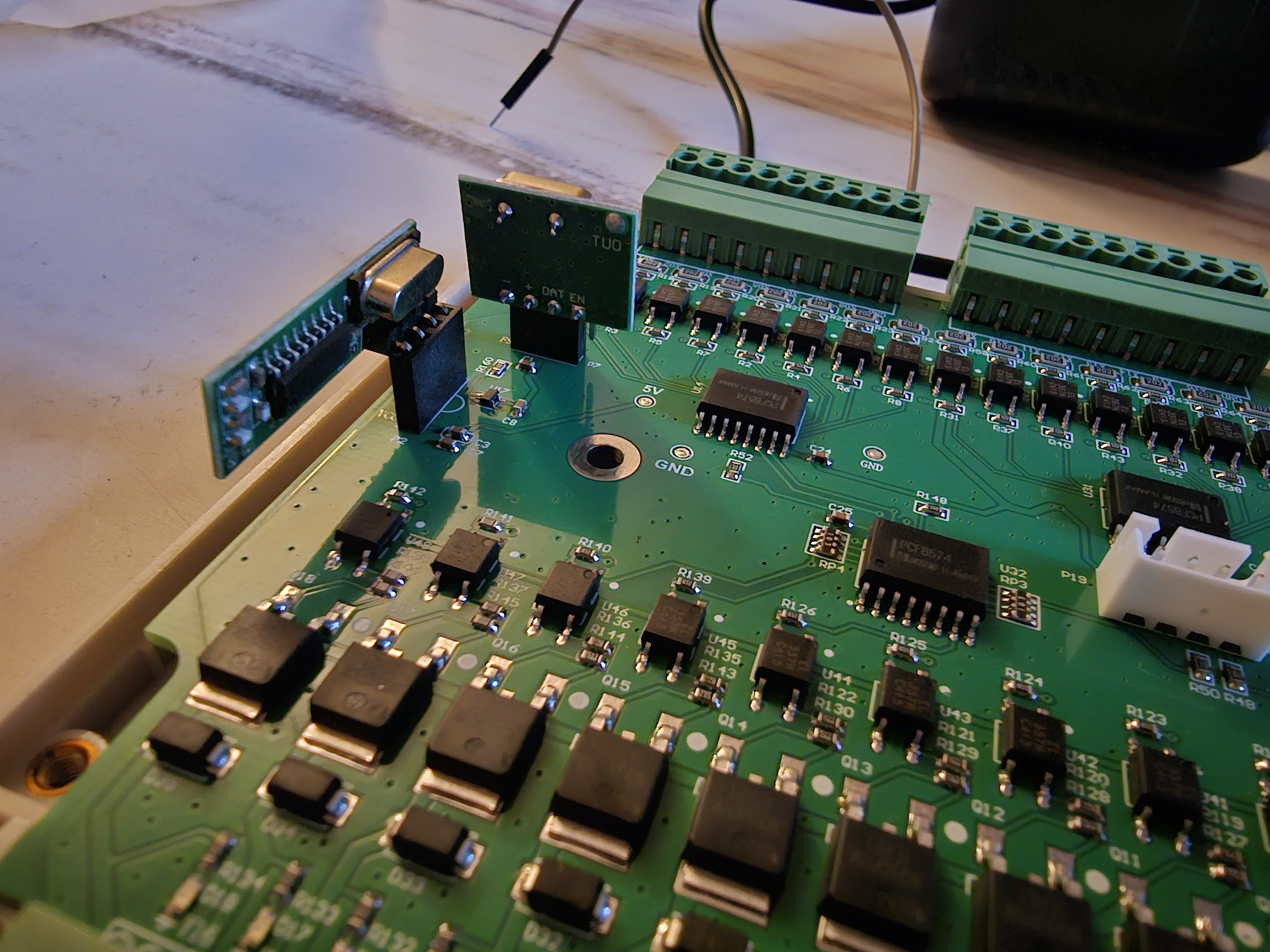

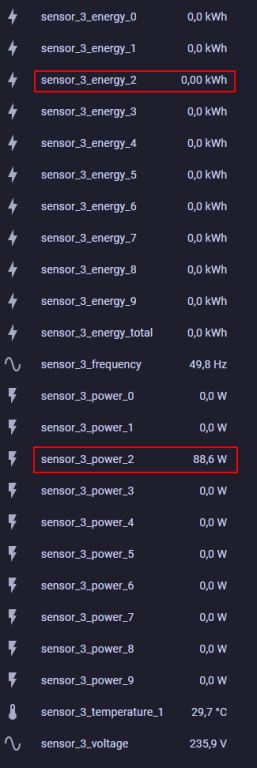

Attached Files Thumbnail(s)

Print this item

  Switch 24v DC KC868-Ax
Posted by: fabuena - 07-04-2022, 07:59 AM - Forum: KC868-Server Raspberry Pi4 local server - Replies (4)

I just bought a KC868-A8 and I want to switch on/off a 24v DC signal. It is posible?

Print this item

  KC868-H32B blinds motor control and connect
Posted by: Autotec2022 - 07-03-2022, 09:47 PM - Forum: KC868-HxB series Smart Controller - Replies (23)

Hello

Can you help with connection and adjustment of all motor blinds on the house
I have 22 shutter motors
i want to connect everything to KC868-H32B
I bought two pieces
Order ID: 8151334628020945
Order ID: 8151122210730945

The engine model I own are Solus 2PA
https://www.somfy.co.in/products/1032574...2-pack-100

I need help with connecting the wires because I won't have a button to control the blinds, but all the motors are connected directly to the KC868-H32B, the control is only done using the app.

In order not to damage the relay by wrong connection, you can send me some instructions and information.

I have see that diagram but im not understand
https://ibb.co/nChbVM3

Im not understand becuse i have think that all motors get power from the relay KC868-H32B or i must bring power cable N L direkt on motors

Print this item

  KinCony ESP32 Tuya iot adapter released!
Posted by: admin - 06-30-2022, 04:32 AM - Forum: News - Replies (4)

KinCony ESP32 Tuya IoT adapter let relay board or IoT devices easy integrate to tuya IoT platform. We have designed by ESP32 work with Tuya module. Tuya module will connect with Tuya cloud server, when using tuya phone app, message will send to tuya wifi module and decode by ESP32. ESP32 support use arduino IDE to write code, get the tuya message and send any command to RS232 or RS485 or network device. it’s a good convert tool for smart home automation DIY.

adapter support to use “Tuya MCU SDK Arduino Library”

KC868-H32B,KC868-H32BS …. HxB series smart controller will be easy support TUYA phone application, alexa and google home voice control function.


[Image: kincony-tuya-adapter-1.jpg]
[Image: kincony-tuya-adapter-2.JPG]
it support install on the DIN rail.
[Image: esp32-tuya-adapter-pins.jpg]
you can write any arduino IDE code or by IDF tool to write code and download firmware by USB-C cable.
[Image: kincony-tuya-adapter-3.JPG]
[Image: kincony-tuya-adapter-4.JPG]
[Image: kincony-tuya-adapter-5.JPG]
[Image: kincony-tuya-adapter-6.JPG]
install wifi antena by SMA socket.
Tuya app , alexa app and google home / google assistant app will be support.
[Image: h32bs-tuya-app-1_pix400.jpg][Image: h32bs-tuya-app-2_pix400.jpg]
[Image: h32bs-tuya-app-3_pix400.jpg][Image: h32bs-tuya-app-4_pix400.jpg]
[Image: h32bs-alexa-app_pix400.jpg][Image: h32bs-google-app_pix400.jpg]
[Image: kincony-tuya-adapter-7.JPG]
suspport use tuya phone app, google home and alexa echo speaker
[Image: kincony-tuya-adapter-8.JPG]
KinCony esp32 tuya adapter work with KC868-H32B by RS232 port
[Image: kincony-tuya-adapter-9.JPG]
KinCony esp32 tuya adapter work with KC868-H32BS by RS232 port
[Image: kincony-tuya-adapter-10.JPG]
[Image: tuya-RS485.jpg]

Print this item

  [Arduino IDE demo source code for KC868-A8S]--#14-KC868-A8S_mqtt-relay_code
Posted by: KinCony Support - 06-30-2022, 12:55 AM - Forum: KC868-A8S - No Replies

[Arduino IDE demo source code for KC868-A8S]--#14-KC868-A8S_mqtt-relay_code
// make sure set your Serial2 pins in your "HardwareSerial.cpp" for ESP32 as follows:

//#define RX2  15
//#define TX2  13

Code:
// code use for KinCony KC868-A8S board


#include "PCF8574.h"

String Publish = "relay8/12345/state"; //Publish Topic
String Subscribe = "relay8/12345/set"; //Subscribe Topic

PCF8574 pcf8574_o(0x24,4,5);
PCF8574 pcf8574_i(0x22,4,5);

void setup()
{
  pinMode(2, OUTPUT);   //beep

  Serial.begin(115200);
  Serial2.begin(115200);

  pcf8574_i.pinMode(P0, INPUT);

  pcf8574_o.pinMode(P0, OUTPUT);
  pcf8574_o.pinMode(P1, OUTPUT);
  pcf8574_o.pinMode(P2, OUTPUT);
  pcf8574_o.pinMode(P3, OUTPUT);
  pcf8574_o.pinMode(P4, OUTPUT);
  pcf8574_o.pinMode(P5, OUTPUT);
  pcf8574_o.pinMode(P6, OUTPUT);
  pcf8574_o.pinMode(P7, OUTPUT);


    Serial.print("Init pcf8574_i...");
    if (pcf8574_i.begin()){
        Serial.println("PCF8674_input_OK");
    }else{
        Serial.println("PCF8674_input_KO");
    }

    Serial.print("Init pcf8574_o...");
    if (pcf8574_o.begin()){
        Serial.println("PCF8674_output_OK");
    }else{
        Serial.println("PCF8674_output_KO");
    }

  pcf8574_o.digitalWrite(P0, HIGH);
  pcf8574_o.digitalWrite(P1, HIGH);
  pcf8574_o.digitalWrite(P2, HIGH);
  pcf8574_o.digitalWrite(P3, HIGH);
  pcf8574_o.digitalWrite(P4, HIGH);
  pcf8574_o.digitalWrite(P5, HIGH);
  pcf8574_o.digitalWrite(P6, HIGH);
  pcf8574_o.digitalWrite(P7, HIGH);

  //AT Commands for setting up the client id and Server
  //Need to be executed once -- Open serial terminal doe seeing the debug messages
  Serial.println("Connecting To Server........");
  Serial2.println("ATE1");
  delay(2000);
  Serial2.println("AT+CMQTTSTART"); //Establishing MQTT Connection
  delay(2000);
  Serial2.println("AT+CMQTTACCQ=0,\"kincony\""); //Client ID - change this for each client as this need to be unique
  delay(2000);
  Serial2.println("AT+CMQTTCONNECT=0,\"tcp://iot.kincony.com:1883\",120,1,\"mqtt\",\"123\""); //MQTT Server Name for connecting this client  user name: mqtt   password: 123
  delay(2000);

  Serial2.println("AT+CMQTTSUB=0,16,1,1"); //Length of message
  delay(1000);
  Serial2.println("relay8/12345/set"); //message
  delay(1000);
  Serial.println("Done");
}

void loop()
{
  String incoming;

//Receiving MODEM Response
  while(Serial2.available()>0)
  {
    delay(10);
    incoming = Serial2.readString();
    Serial.println(incoming);

    //Serial.println(b);
    if(incoming.indexOf("PAYLOAD") != -1)
    {
       int new1 = incoming.indexOf("PAYLOAD");
       String neww = incoming.substring(new1);
       int new2 = neww.indexOf('\n');
       String new3 = neww.substring(new2+1);
       int new4 = new3.indexOf('\n');
       String new5 = new3.substring(0,new4);

       Serial.println("Topic: relay/subscribe");
       Serial.print("Message is: ");
       Serial.println(new5);
       new5.remove(new5.length()-1);
       if(new5 == "{\"relay1\":{\"on\":1}}")
       {
        Serial.println("relay1 ON");
        pcf8574_o.digitalWrite(P0, LOW);


      Serial.println("Publishing Message: relay1 ON");
      Serial2.println("AT+CMQTTTOPIC=0,18"); //AT Command for Setting up the Publish Topic Name
      delay(1000);
      Serial2.println(Publish); //Topic Name
      delay(1000);
      Serial2.println("AT+CMQTTPAYLOAD=0,19"); //Payload length
      delay(1000);
      Serial2.println("{\"relay1\":{\"on\":1}}"); //Payload message
      delay(1000);
      Serial2.println("AT+CMQTTPUB=0,1,60"); //Acknowledgment
      delay(1000);

       }
       else if(new5 == "{\"relay1\":{\"on\":0}}")
       {
        Serial.println("relay1 OFF");
        pcf8574_o.digitalWrite(P0, HIGH);


      Serial.println("Publishing Message: relay1 OFF");
      Serial2.println("AT+CMQTTTOPIC=0,18"); //AT Command for Setting up the Publish Topic Name
      delay(1000);
      Serial2.println(Publish); //Topic Name
      delay(1000);
      Serial2.println("AT+CMQTTPAYLOAD=0,19"); //Payload length
      delay(1000);
      Serial2.println("{\"relay1\":{\"on\":0}}"); //Payload message
      delay(1000);
      Serial2.println("AT+CMQTTPUB=0,1,60"); //Acknowledgment
      delay(1000);

       }
    }
  }
}
Print this item

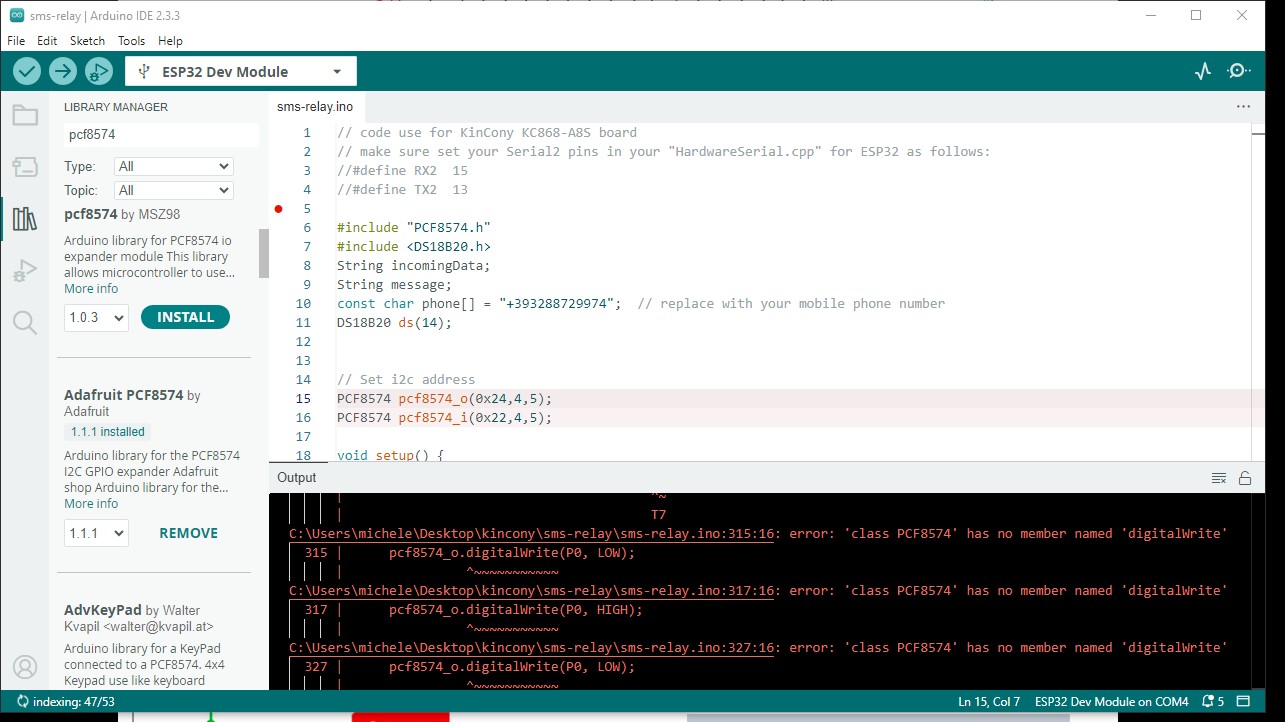

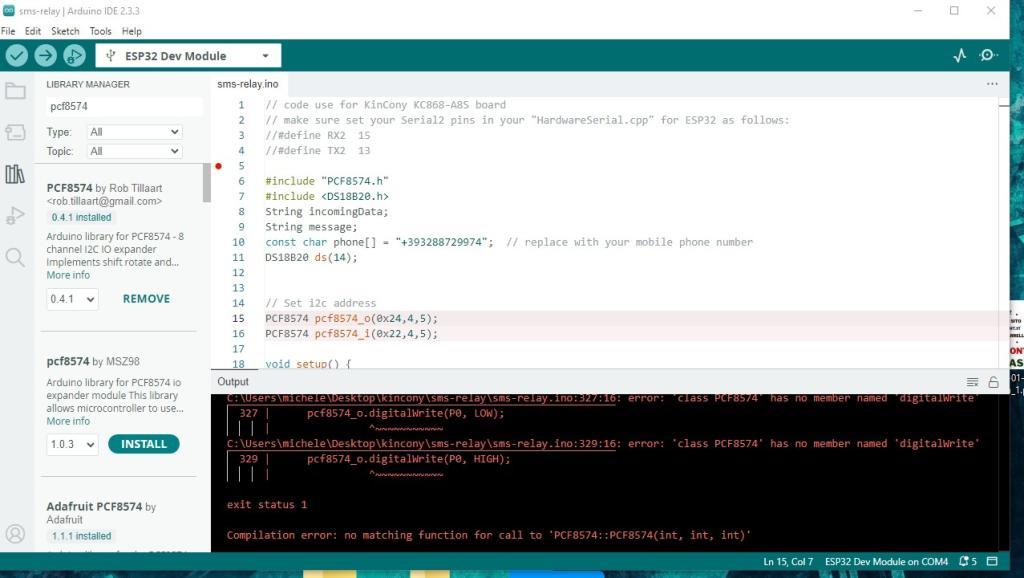

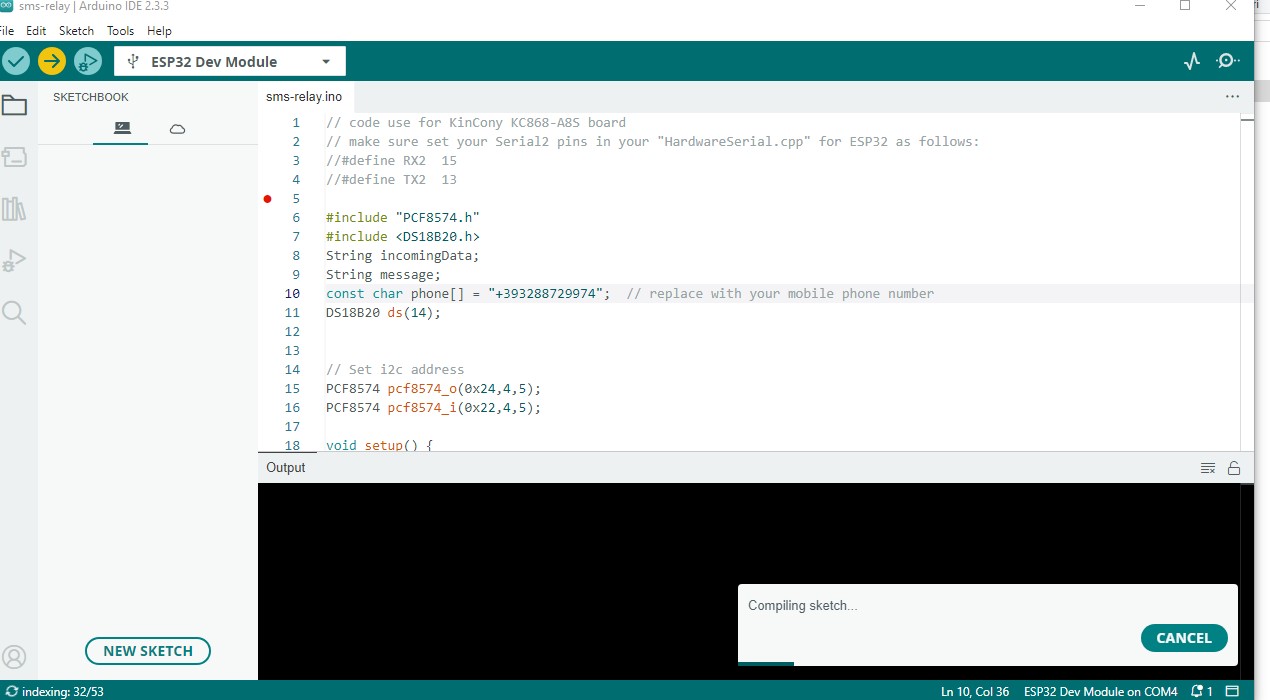

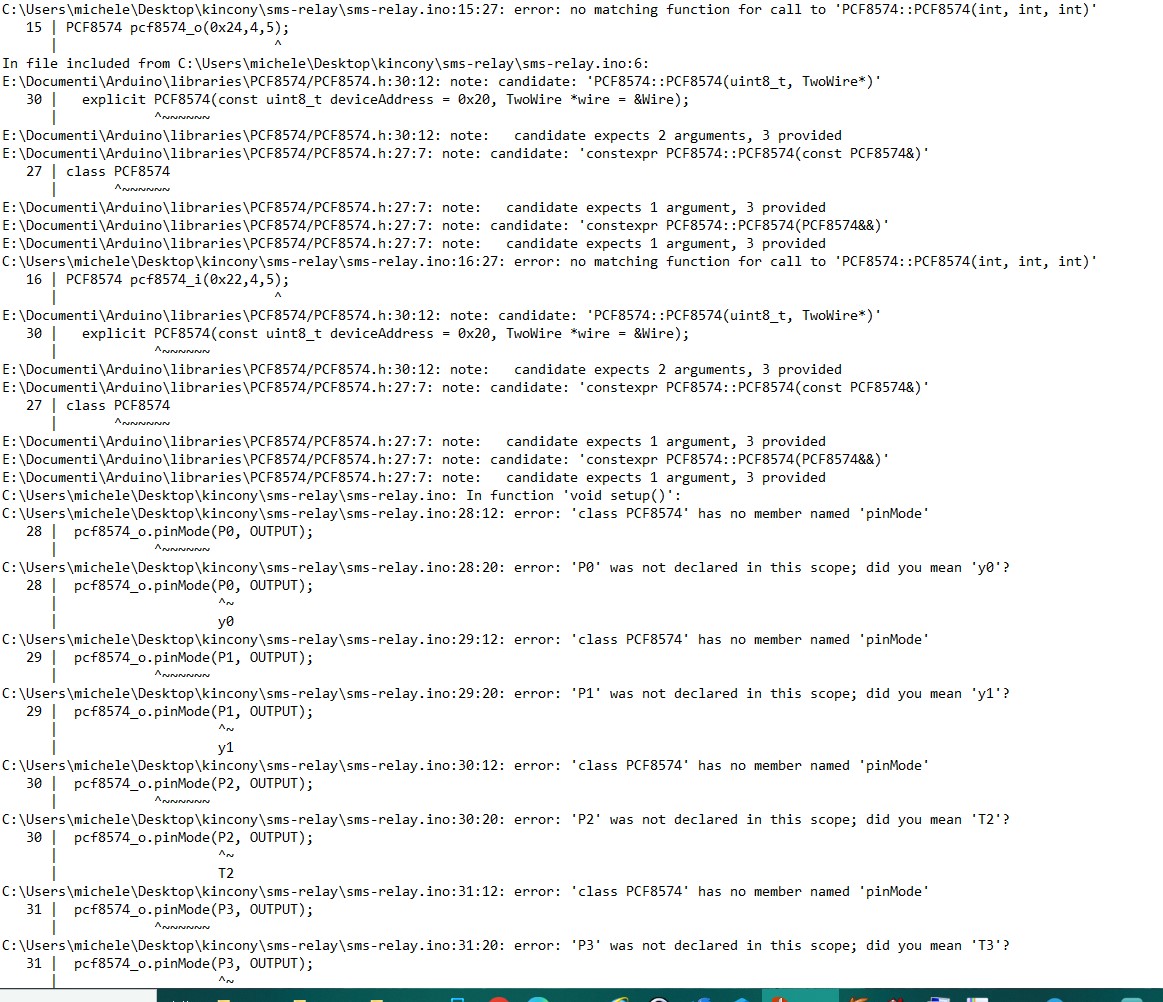

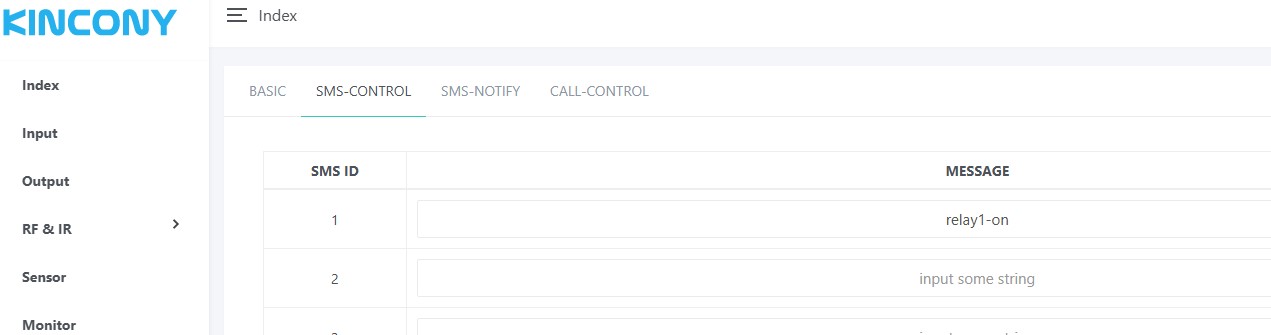

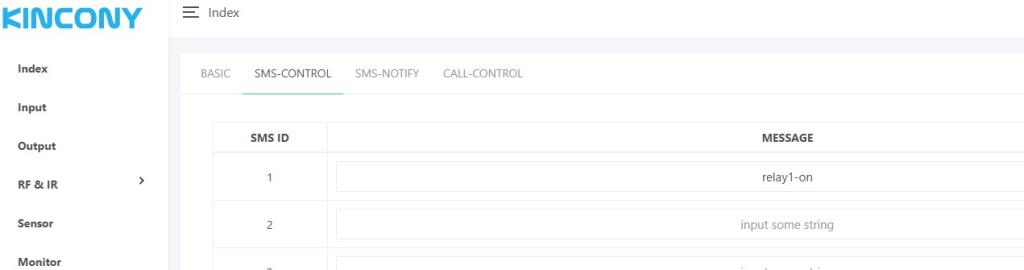

  [Arduino IDE demo source code for KC868-A8S]--#13-KC868-A8S_sms-relay_code
Posted by: KinCony Support - 06-30-2022, 12:54 AM - Forum: KC868-A8S - No Replies

[Arduino IDE demo source code for KC868-A8S]--#13-KC868-A8S_sms-relay_code
// make sure set your Serial2 pins in your "HardwareSerial.cpp" for ESP32 as follows:
//#define RX2  15
//#define TX2  13



Code:
// code use for KinCony KC868-A8S board

#include "PCF8574.h"
#include <DS18B20.h>
String incomingData;
String message;
const char phone[] = "xxxxxxxxxxx";  // replace with your mobile phone number
DS18B20 ds(14);


// Set i2c address
PCF8574 pcf8574_o(0x24,4,5);
PCF8574 pcf8574_i(0x22,4,5);

void setup() {
pinMode(2, OUTPUT);   //beep

Serial.begin(115200);
Serial2.begin(115200);

   // set gsm module to tp show the output on serial out
Serial2.print("AT+CNMI=2,2,0,0,0\r");
delay(100);

pcf8574_o.pinMode(P0, OUTPUT);
pcf8574_o.pinMode(P1, OUTPUT);
pcf8574_o.pinMode(P2, OUTPUT);
pcf8574_o.pinMode(P3, OUTPUT);
pcf8574_o.pinMode(P4, OUTPUT);
pcf8574_o.pinMode(P5, OUTPUT);
pcf8574_o.pinMode(P6, OUTPUT);
pcf8574_o.pinMode(P7, OUTPUT);

pcf8574_i.pinMode(P0, INPUT);
pcf8574_i.pinMode(P1, INPUT);
pcf8574_i.pinMode(P2, INPUT);
pcf8574_i.pinMode(P3, INPUT);
pcf8574_i.pinMode(P4, INPUT);
pcf8574_i.pinMode(P5, INPUT);
pcf8574_i.pinMode(P6, INPUT);
pcf8574_i.pinMode(P7, INPUT);


Serial.print("Init pcf8574_output...");
  if (pcf8574_o.begin()){
    Serial.println("OK");
  }else{
    Serial.println("KO");
       }

Serial.print("Init pcf8574_input...");
  if (pcf8574_i.begin()){
    Serial.println("OK");
  }else{
    Serial.println("KO");
       }


pcf8574_o.digitalWrite(P0, HIGH);
pcf8574_o.digitalWrite(P1, HIGH);
pcf8574_o.digitalWrite(P2, HIGH);
pcf8574_o.digitalWrite(P3, HIGH);
pcf8574_o.digitalWrite(P4, HIGH);
pcf8574_o.digitalWrite(P5, HIGH);
pcf8574_o.digitalWrite(P6, HIGH);
pcf8574_o.digitalWrite(P7, HIGH);

Serial.print(ds.getTempC());

Serial.print("start test");

Serial2.print("AT+CMGF=1\r");  //Set text mode
/* digitalWrite(2, HIGH);
delay(200);
digitalWrite(2, LOW);
delay(200);
digitalWrite(2, HIGH);
delay(200);
digitalWrite(2, LOW);*/
}

void loop() {
// if received command is to turn on relay
  receive_message();

  if(incomingData.indexOf("relay1-on")>=0)
  {
    pcf8574_o.digitalWrite(P0, LOW);
    message = "Relay1 is turned ON";
    // Send a sms back to confirm that the relay is turned on
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }

  // if received command is to turn off relay
  if(incomingData.indexOf("relay1-off")>=0)
  {
    pcf8574_o.digitalWrite(P0, HIGH);
    message = "Relay1 is turned OFF";
    // Send a sms back to confirm that the relay is turned off
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }

  if(incomingData.indexOf("relay2-on")>=0)
  {
    pcf8574_o.digitalWrite(P1, LOW);
    message = "Relay2 is turned ON";
    // Send a sms back to confirm that the relay is turned on
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }

  // if received command is to turn off relay
  if(incomingData.indexOf("relay2-off")>=0)
  {
    pcf8574_o.digitalWrite(P1, HIGH);
    message = "Relay2 is turned OFF";
    // Send a sms back to confirm that the relay is turned off
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }

  if(incomingData.indexOf("relay3-on")>=0)
  {
    pcf8574_o.digitalWrite(P2, LOW);
    message = "Relay3 is turned ON";
    // Send a sms back to confirm that the relay is turned on
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }

  // if received command is to turn off relay
  if(incomingData.indexOf("relay3-off")>=0)
  {
    pcf8574_o.digitalWrite(P2, HIGH);
    message = "Relay3 is turned OFF";
    // Send a sms back to confirm that the relay is turned off
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }

  if(incomingData.indexOf("relay4-on")>=0)
  {
    pcf8574_o.digitalWrite(P3, LOW);
    message = "Relay4 is turned ON";
    // Send a sms back to confirm that the relay is turned on
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }

  // if received command is to turn off relay
  if(incomingData.indexOf("relay4-off")>=0)
  {
    pcf8574_o.digitalWrite(P3, HIGH);
    message = "Relay4 is turned OFF";
    // Send a sms back to confirm that the relay is turned off
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }

  if(incomingData.indexOf("relay5-on")>=0)
  {
    pcf8574_o.digitalWrite(P4, LOW);
    message = "Relay5 is turned ON";
    // Send a sms back to confirm that the relay is turned on
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }

  // if received command is to turn off relay
  if(incomingData.indexOf("relay5-off")>=0)
  {
    pcf8574_o.digitalWrite(P4, HIGH);
    message = "Relay5 is turned OFF";
    // Send a sms back to confirm that the relay is turned off
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }

  if(incomingData.indexOf("relay6-on")>=0)
  {
    pcf8574_o.digitalWrite(P5, LOW);
    message = "Relay6 is turned ON";
    // Send a sms back to confirm that the relay is turned on
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }

  // if received command is to turn off relay
  if(incomingData.indexOf("relay6-off")>=0)
  {
    pcf8574_o.digitalWrite(P5, HIGH);
    message = "Relay6 is turned OFF";
    // Send a sms back to confirm that the relay is turned off
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }

  if(incomingData.indexOf("relay7-on")>=0)
  {
    pcf8574_o.digitalWrite(P6, LOW);
    message = "Relay7 is turned ON";
    // Send a sms back to confirm that the relay is turned on
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }

  // if received command is to turn off relay
  if(incomingData.indexOf("relay7-off")>=0)
  {
    pcf8574_o.digitalWrite(P6, HIGH);
    message = "Relay7 is turned OFF";
    // Send a sms back to confirm that the relay is turned off
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }

  if(incomingData.indexOf("relay8-on")>=0)
  {
    pcf8574_o.digitalWrite(P7, LOW);
    message = "Relay8 is turned ON";
    // Send a sms back to confirm that the relay is turned on
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }

  // if received command is to turn off relay
  if(incomingData.indexOf("relay8-off")>=0)
  {
    pcf8574_o.digitalWrite(P7, HIGH);
    message = "Relay8 is turned OFF";
    // Send a sms back to confirm that the relay is turned off
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }

  if(incomingData.indexOf("all-on")>=0)
  {
    pcf8574_o.digitalWrite(P0, LOW);
    pcf8574_o.digitalWrite(P1, LOW);
    pcf8574_o.digitalWrite(P2, LOW);
    pcf8574_o.digitalWrite(P3, LOW);
    pcf8574_o.digitalWrite(P4, LOW);
    pcf8574_o.digitalWrite(P5, LOW);
    pcf8574_o.digitalWrite(P6, LOW);
    pcf8574_o.digitalWrite(P7, LOW);
    message = "All relay are turned ON";
    // Send a sms back to confirm that the relay is turned off
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }

  if(incomingData.indexOf("all-off")>=0)
  {
    pcf8574_o.digitalWrite(P0, HIGH);
    pcf8574_o.digitalWrite(P1, HIGH);
    pcf8574_o.digitalWrite(P2, HIGH);
    pcf8574_o.digitalWrite(P3, HIGH);
    pcf8574_o.digitalWrite(P4, HIGH);
    pcf8574_o.digitalWrite(P5, HIGH);
    pcf8574_o.digitalWrite(P6, HIGH);
    pcf8574_o.digitalWrite(P7, HIGH);
    message = "All relay are turned OFF";
    // Send a sms back to confirm that the relay is turned off
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }

  if(incomingData.indexOf("temper")>=0)
  {

    message = "Temperature is "+String(ds.getTempC(),2)+" C";
    send_message(message);
    Serial2.println("AT+CMGD=1,4");  //delete all SMS on SIM card
    delay(100);
  }


  incomingData="";

  uint8_t val1 = pcf8574_i.digitalRead(P0);
  uint8_t val2 = pcf8574_i.digitalRead(P1);
  uint8_t val3 = pcf8574_i.digitalRead(P2);
  uint8_t val4 = pcf8574_i.digitalRead(P3);
  uint8_t val5 = pcf8574_i.digitalRead(P4);
  uint8_t val6 = pcf8574_i.digitalRead(P5);
  uint8_t val7 = pcf8574_i.digitalRead(P6);
  uint8_t val8 = pcf8574_i.digitalRead(P7);

  if (val1==LOW)
   {
     Serial.println("input1 trigger");
     pcf8574_o.digitalWrite(P0, LOW);
     delay(5000);
     pcf8574_o.digitalWrite(P0, HIGH);

     message = "door sensor is triggered,someone in the room!";
     send_message(message);
     delay(100);
   }

  if (val2==LOW)
   {
     Serial.println("input2 trigger");
     pcf8574_o.digitalWrite(P0, LOW);
     delay(5000);
     pcf8574_o.digitalWrite(P0, HIGH);

     message = "window sensor is triggered,someone in the room!";
     send_message(message);
     delay(100);
   }

  if (val3==LOW)
   {
     Serial.println("input3 trigger");
     message = "sensor3 is triggered,someone in the room!";
     send_message(message);
     delay(100);
   }

  if (val4==LOW)
   {
     Serial.println("input4 trigger");
     message = "sensor4 is triggered,someone in the room!";
     send_message(message);
     delay(100);
   }

  if (val5==LOW)
   {
     Serial.println("input5 trigger");
     message = "sensor5 is triggered,someone in the room!";
     send_message(message);
     delay(100);
   }

  if (val6==LOW)
   {
     Serial.println("input6 trigger");
     message = "sensor6 is triggered,someone in the room!";
     send_message(message);
     delay(100);
   }

  if (val7==LOW)
   {
     Serial.println("input7 trigger");
     message = "sensor7 is triggered,someone in the room!";
     send_message(message);
     delay(100);
   }

  if (val8==LOW)
   {
     Serial.println("input8 trigger");
     message = "sensor8 is triggered,someone in the room!";
     send_message(message);
     delay(100);
   }
delay(200);
}

void receive_message()
{
  if (Serial2.available() > 0)
  {
    incomingData = Serial2.readString(); // Get the data from the serial port.
    Serial.print(incomingData);
    delay(10);
  }
}

void send_message(String message)
{
  Serial2.println("AT+CMGF=1");    //Set the GSM Module in Text Mode
  delay(100);
  Serial2.print("AT+CMGS=\""+String(phone)+"\"\r"); //Send message
  delay(100);
  Serial2.println(message);   // The SMS text you want to send
  delay(100);
  Serial2.println((char)26);  // ASCII code of CTRL+Z
  delay(100);
  Serial2.println();
  delay(100);
}
Print this item

  [Arduino IDE demo source code for KC868-A8S]--#12-KC868-A8S_sms_code
Posted by: KinCony Support - 06-30-2022, 12:52 AM - Forum: KC868-A8S - No Replies

[Arduino IDE demo source code for KC868-A8S]--#12-KC868-A8S_sms_code

Code:
//code use for KC868-A8S board
const char phone[] = "13100000000";  //replace for your mobile phone number

int data;
String message;
unsigned long int last;

void setup()
{

Serial.begin(115200);
Serial2.begin(115200);


  Serial.print("start test");

  send_sms("Test message from KinCony KC868-A8S");
}

void loop()
{
check_sms_responce();
}

void send_sms ( String sms)
{
      Serial2.print("AT+CMGF=1\r");  //Set text mode
      delay(1000);
      Serial2.print("AT+CMGS=\""+String(phone)+"\"\r"); //Send message
      delay(1000);
      Serial2.print(sms);//Text message
      Serial2.println((char)0x1A); //Ctrl+Z
}

void check_sms_responce()
{
   if(Serial2.available()>0)
  {
    delay(60);
    message="";
    while(Serial2.available())
    {
      message+=(char)Serial2.read();
    }
    Serial.print(message);
  }
}
Print this item

  [Arduino IDE demo source code for KC868-A8S]--#11-KC868-A8S_AT-debug_code
Posted by: KinCony Support - 06-30-2022, 12:49 AM - Forum: KC868-A8S - Replies (1)

[Arduino IDE demo source code for KC868-A8S]--#11-KC868-A8S_AT-debug_code

Code:
void setup() {
  Serial.begin(115200);
  Serial2.begin(115200);
}

void loop() {
  while (Serial.available()) {
      delay(1);
      Serial2.write(Serial.read());
  }
  while (Serial2.available()) {
       Serial.write(Serial2.read());
  }
}
Print this item

Question Dimmer D8 lost Ethernet connection after reset
Posted by: KjetilK - 06-28-2022, 09:45 PM - Forum: KC868-HxB series Smart Controller - Replies (3)

Hi! I was just setting up a KC868-D8 dimmer controller that I bought some time ago.

Initially, it came up without problems, and I was able to control the one dimmer circuit I attached to it using the Web interface. Cool . It got an IP from the DHCP server in the LAN, I have it configured to give addresses in the 172.22.0.0/16 range.

Then I changed the passwords, since I don't like to have default passwords around for security. The server came back up again, but I couldn't log in, though I'm pretty sure I entered the correct password. So, thinking it would reset the password, I hit the reset button.

But now to the biggest problem: It does not connect to my network now.

I see no traffic from it in my logs, it doesn't contact the DHCP server, its MAC is listed as incomplete with arp, and there is also no response at 192.168.1.200:4196 (which is not strange, since that address wouldn't be allowed in my network).

What could be the reason for this and how do I fix it?

Could it possibly be that it insists on the 192.168.1.200 address, and so it doesn't ask the DHCP server?

Print this item

  KC868 A4 - Wifi Lost
Posted by: mfjunior96 - 06-27-2022, 01:37 PM - Forum: KC868-A4 - Replies (5)

Goodnight,

I have a problem with my KC868 A4 board - I made her code, to use it with alexa, but in about 10 days (it varies a lot) when asking for a command through alexa it doesn't find the devices, as if it had no wifi connection, so I click the reset button and it works normally again, has this happened to anyone?

thanks in advance



Attached Files
.zip   Casa_A4_Digital_Wifi_IR_LED.zip (Size: 1.5 KB / Downloads: 236)
Print this item
